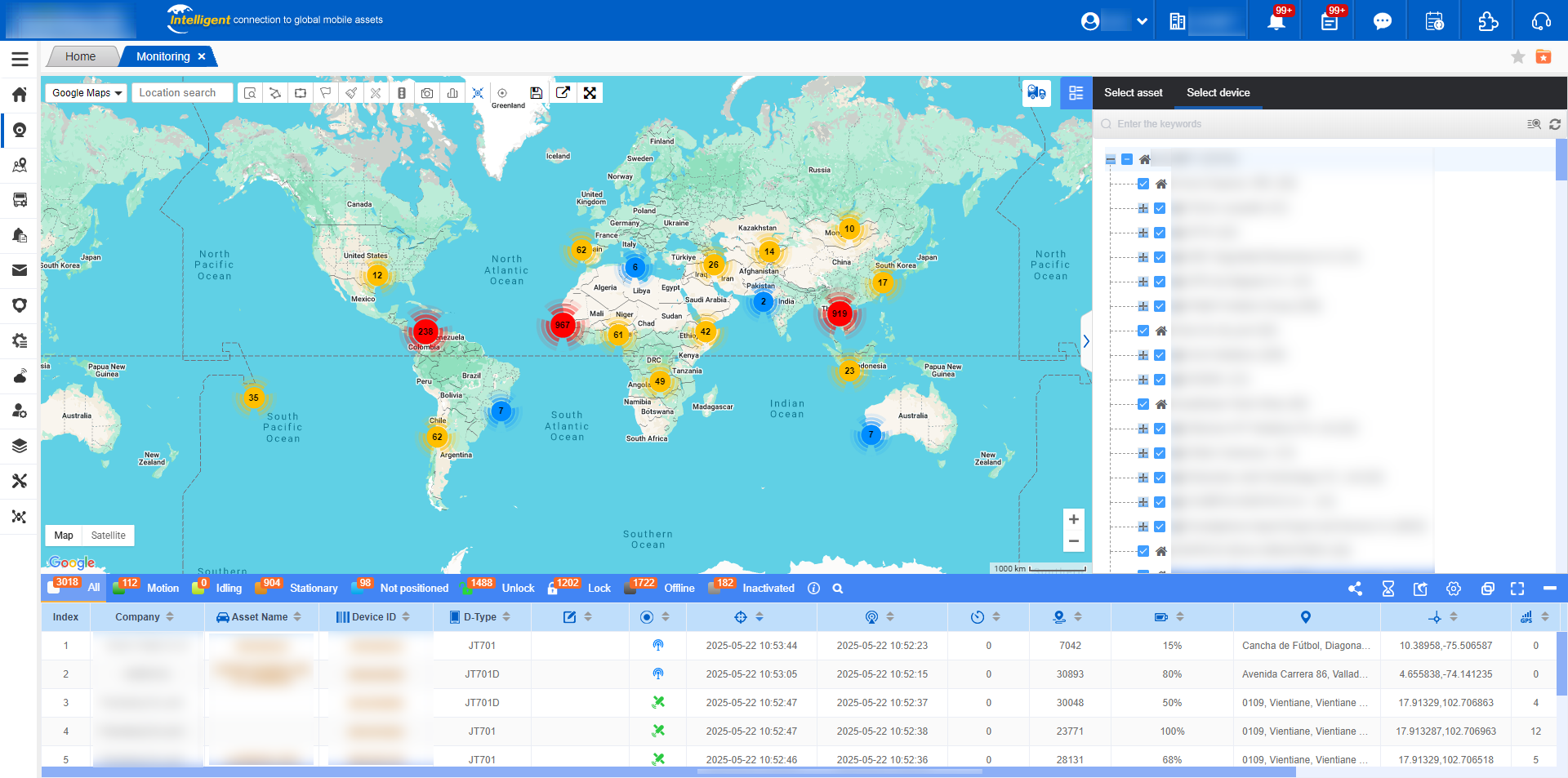

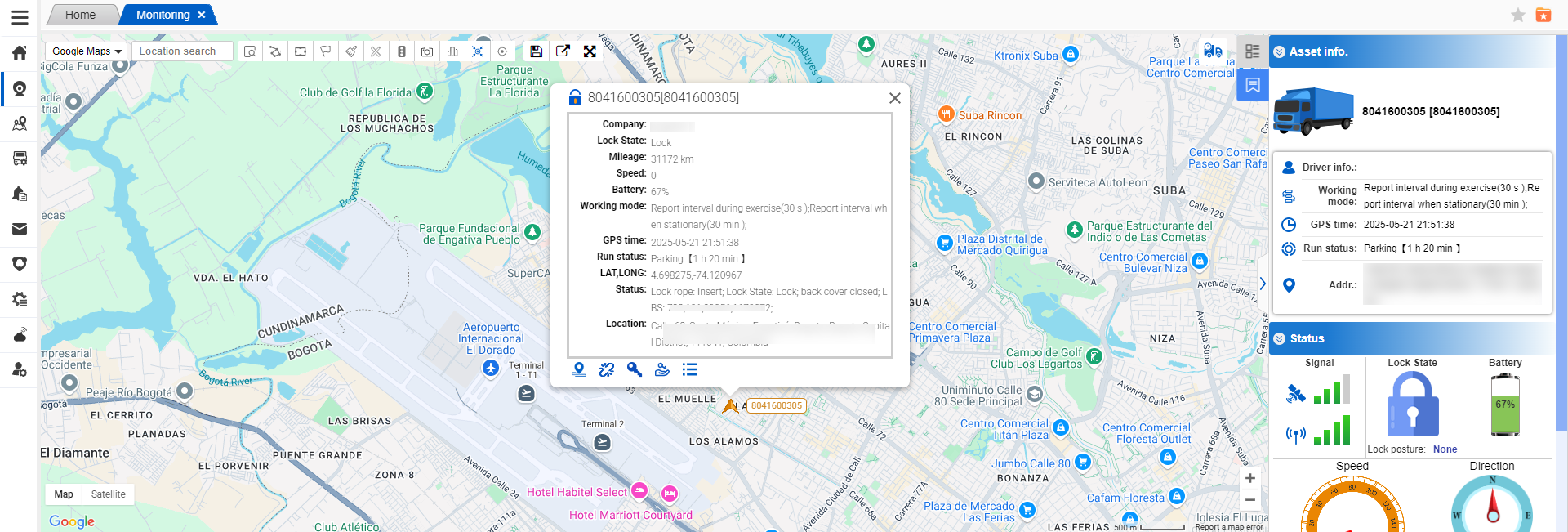

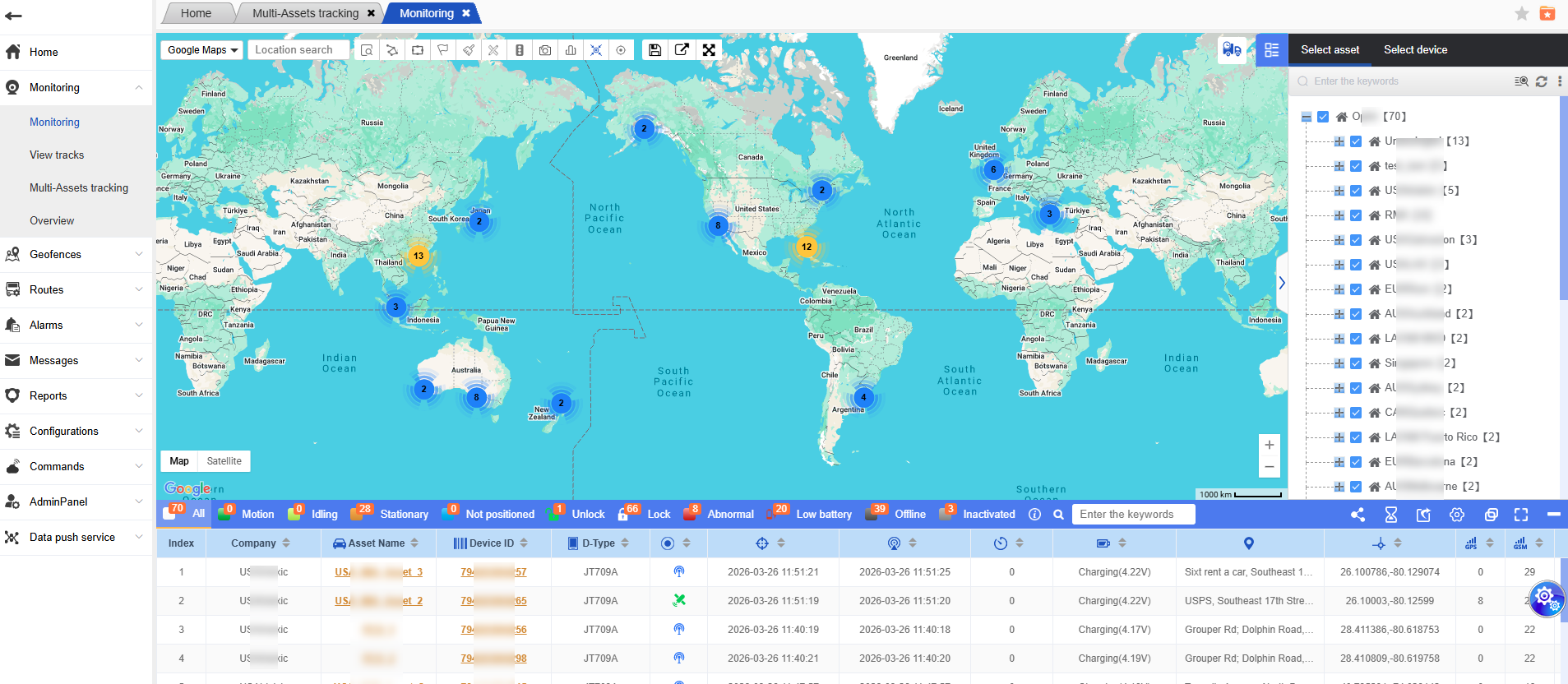

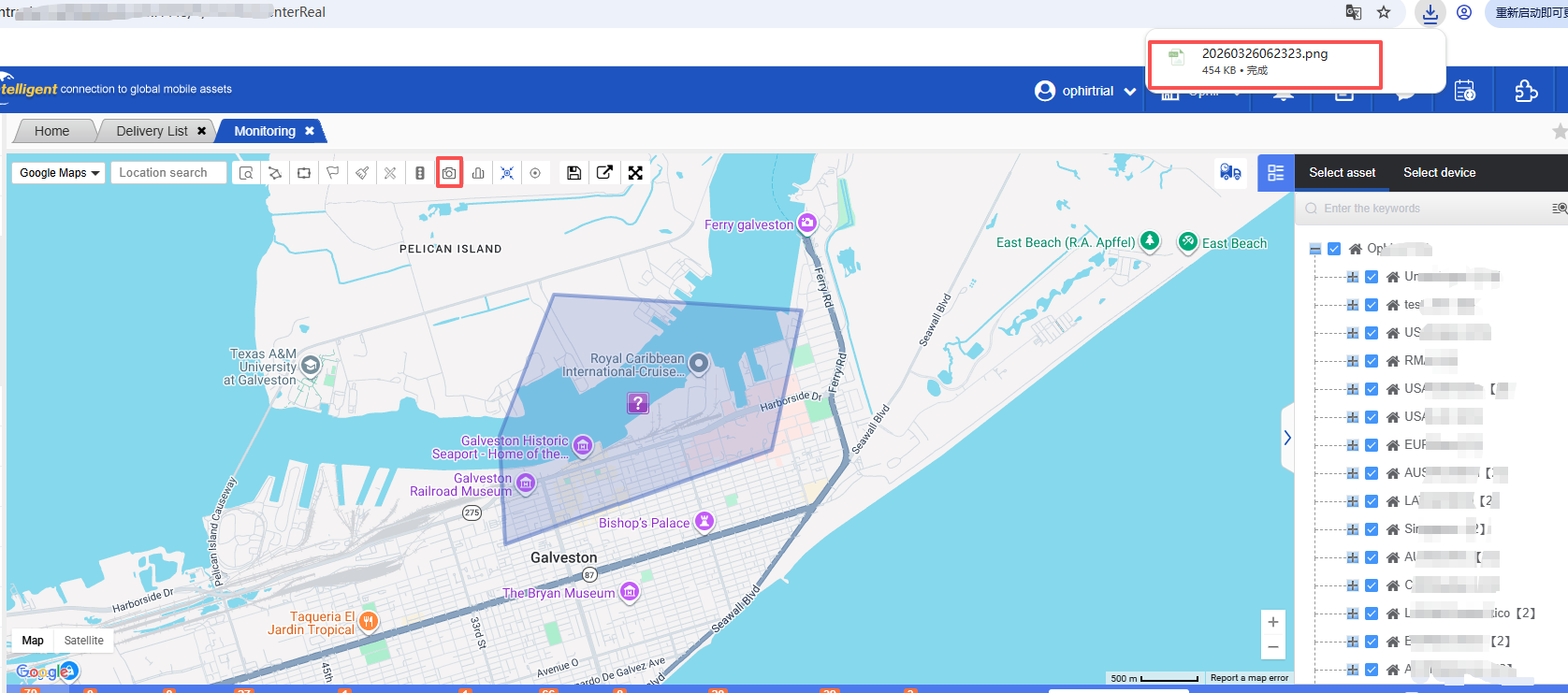

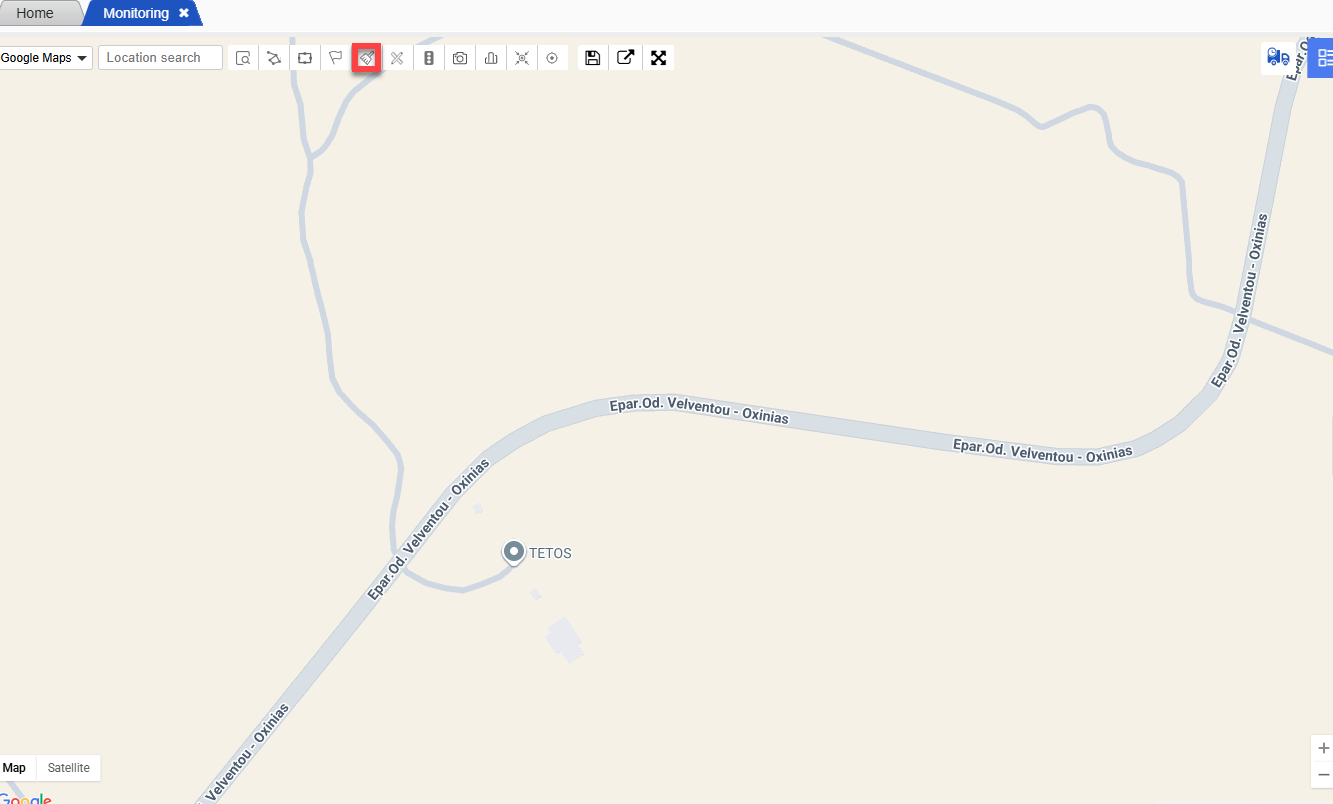

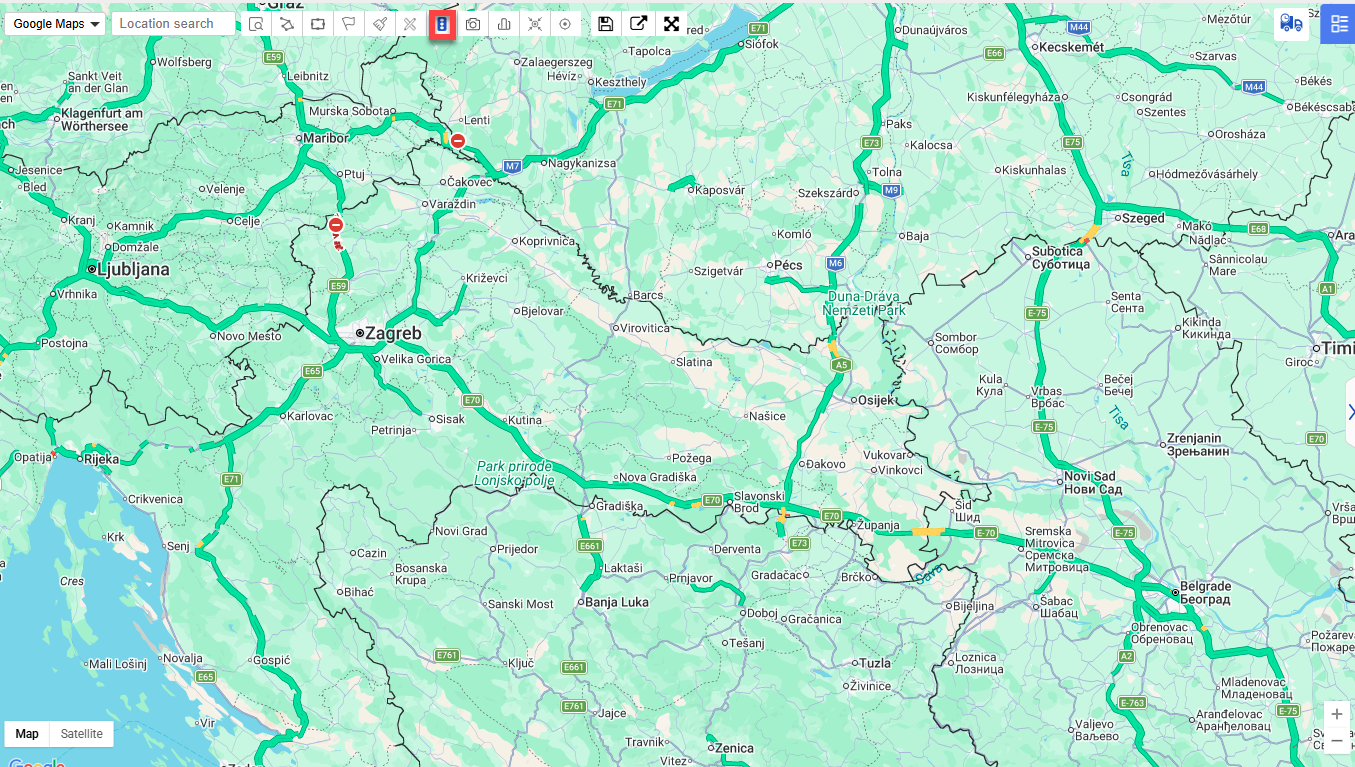

The overall effect of monitoring is as follows:

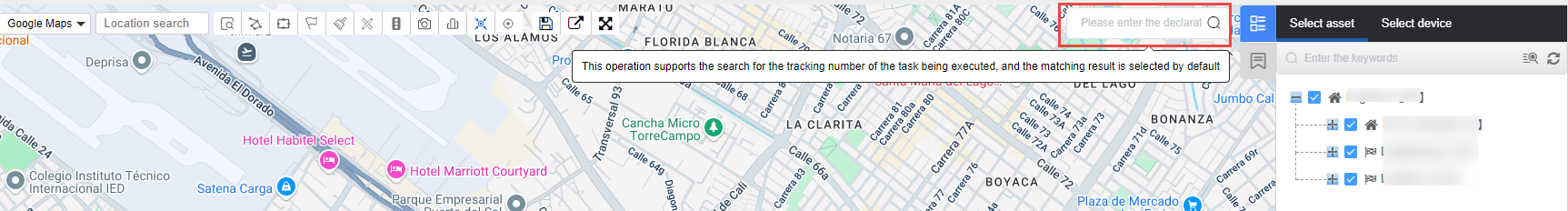

On the right is a assets tree, which displays the asset tree list of all companies that can be managed by the current account. Select a company, group or single asset can see the asset’s location information in real time on the map;

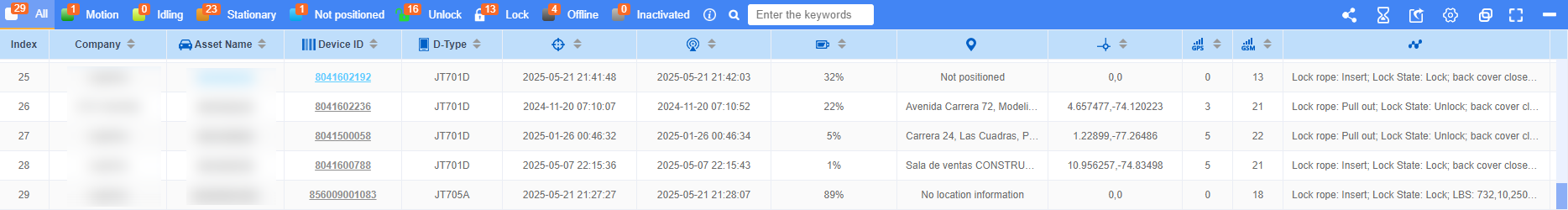

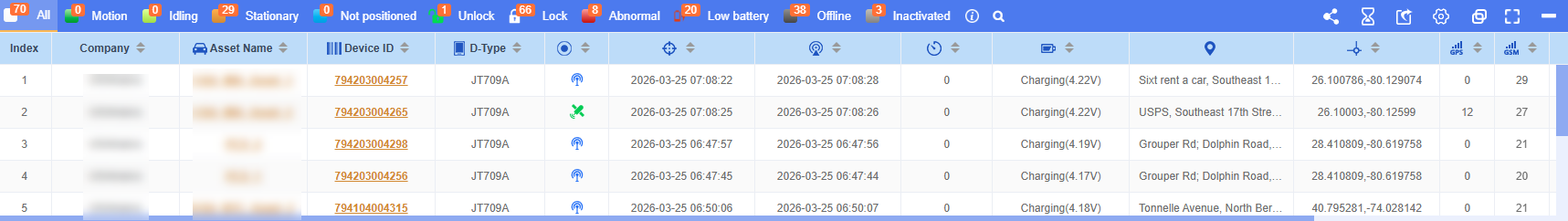

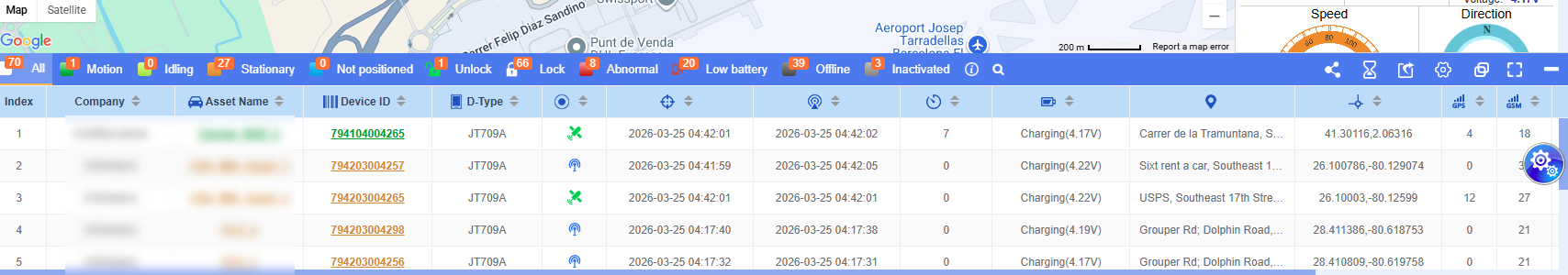

The lower part is a detailed table of positioning information, which is displayed according to the state of the asset;

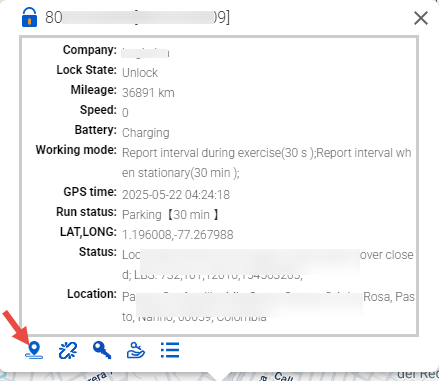

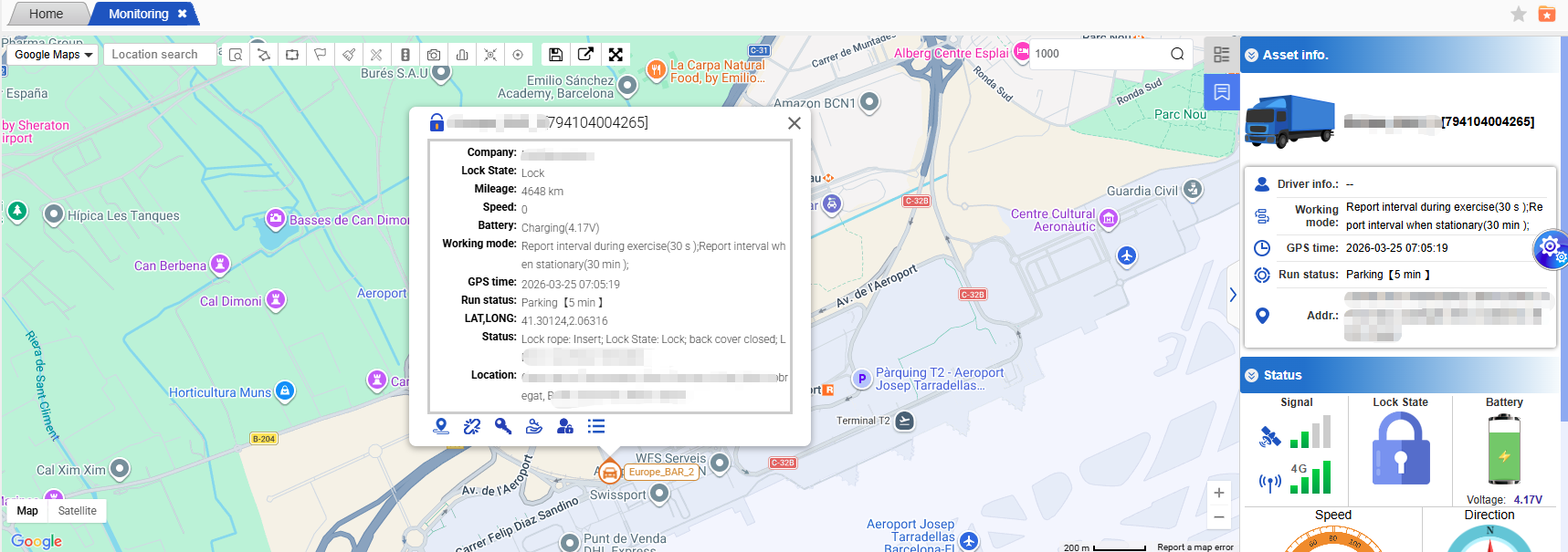

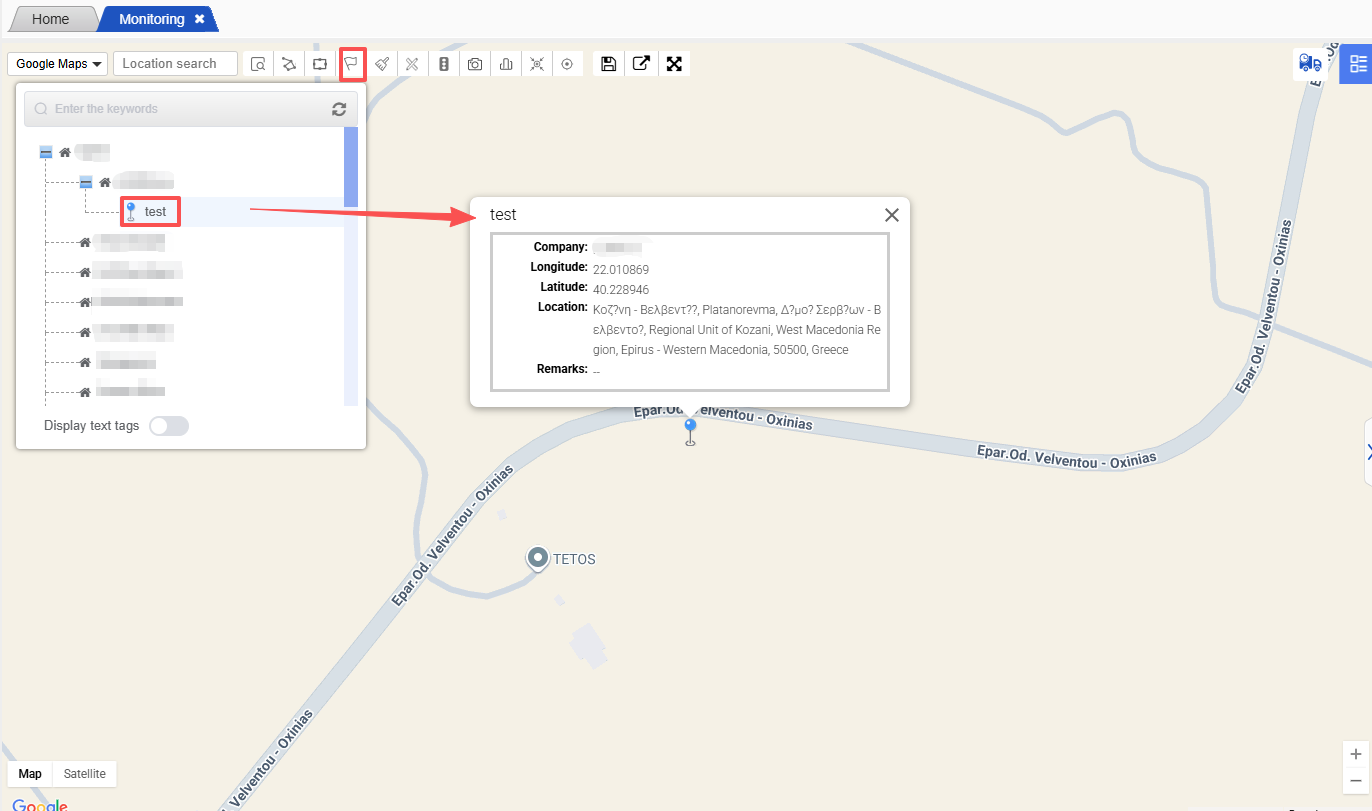

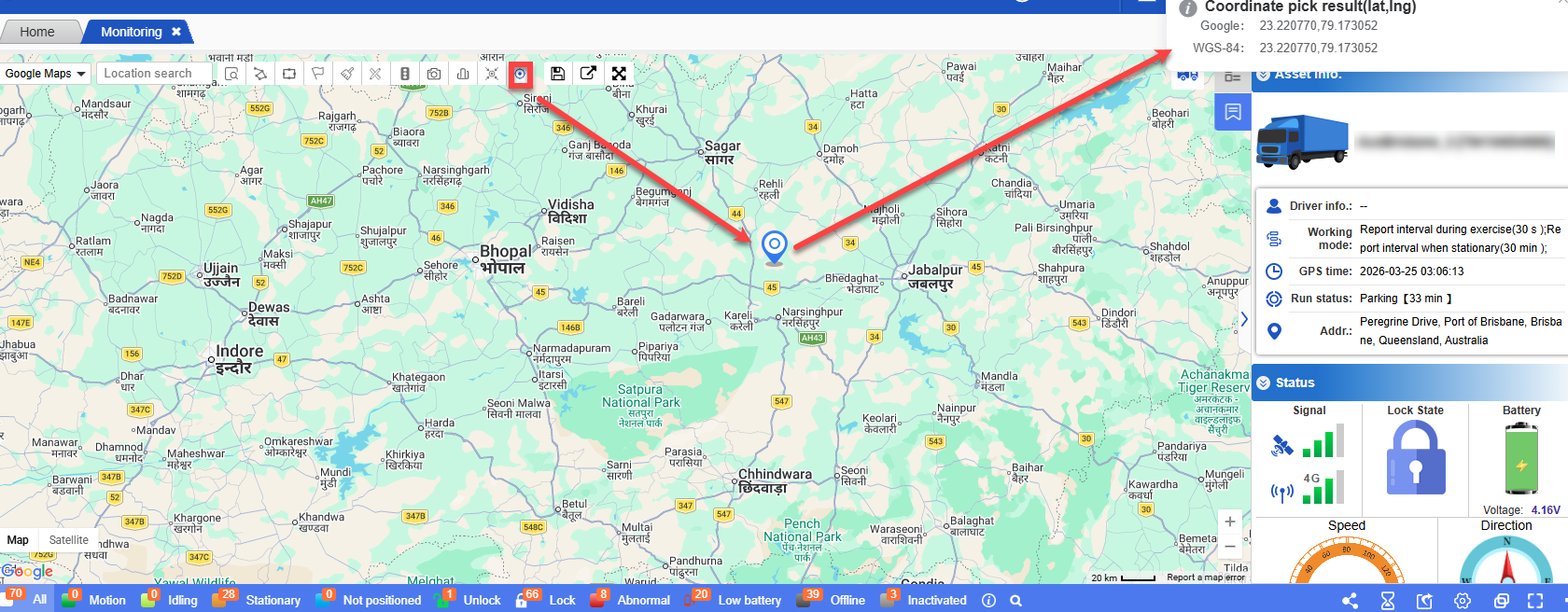

Select a asset to display the detailed information of the current asset;

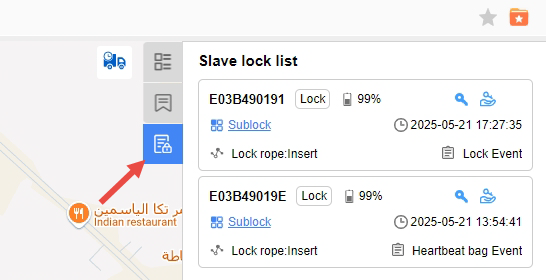

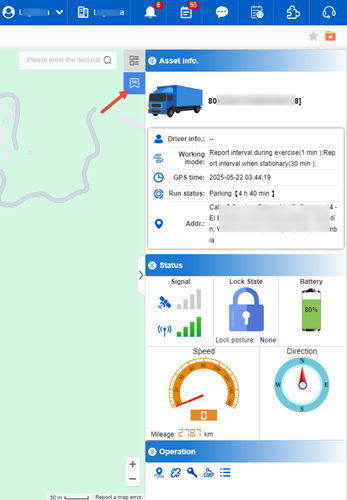

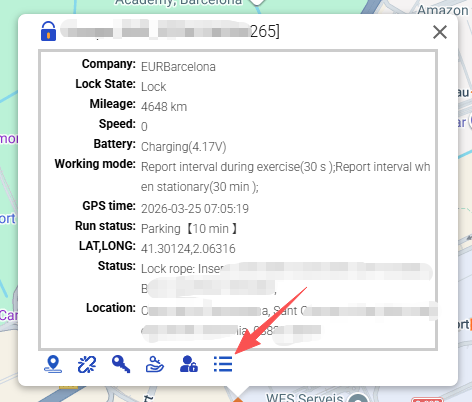

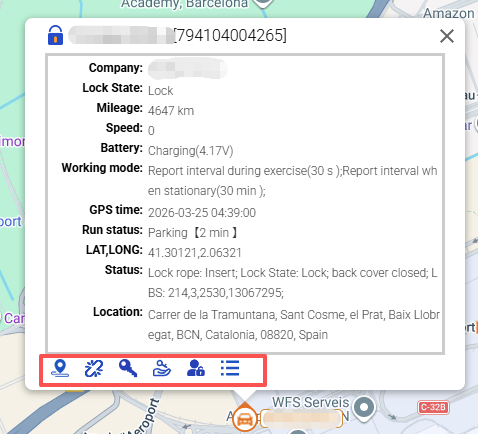

Different states and operations can be displayed in the bullet frame and the status information bar on the right according to the type of device bound to the asset.

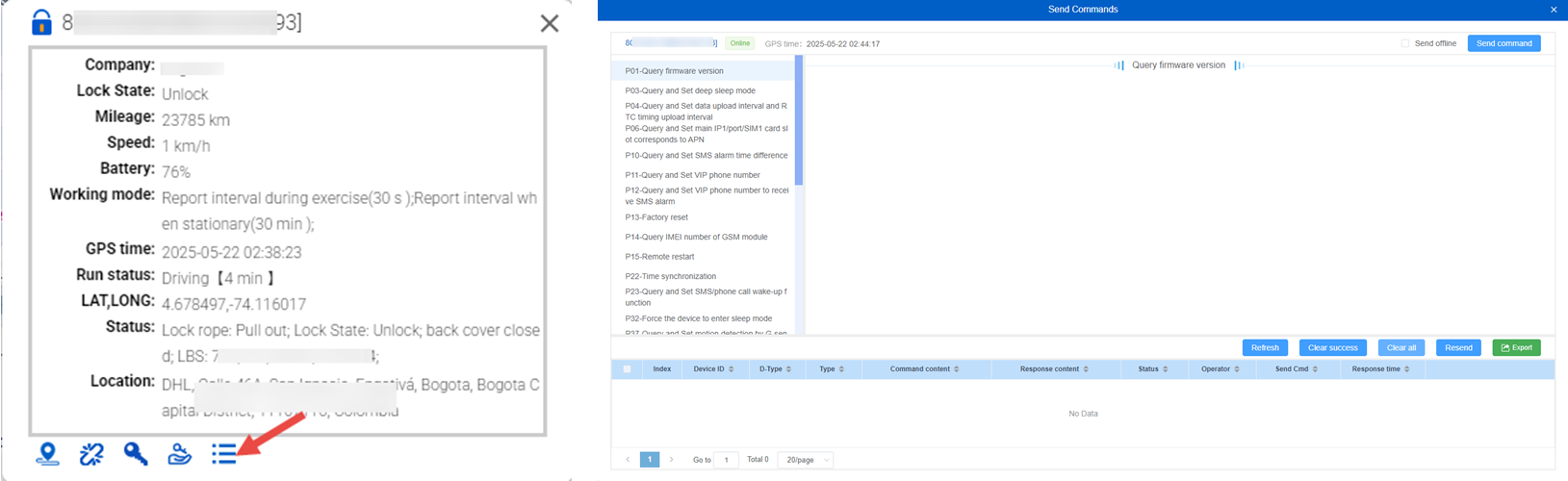

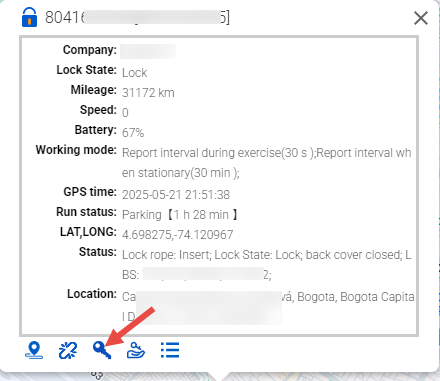

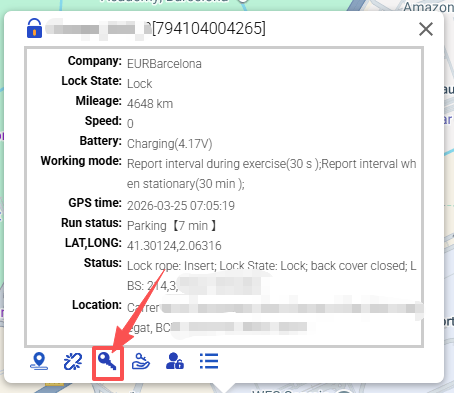

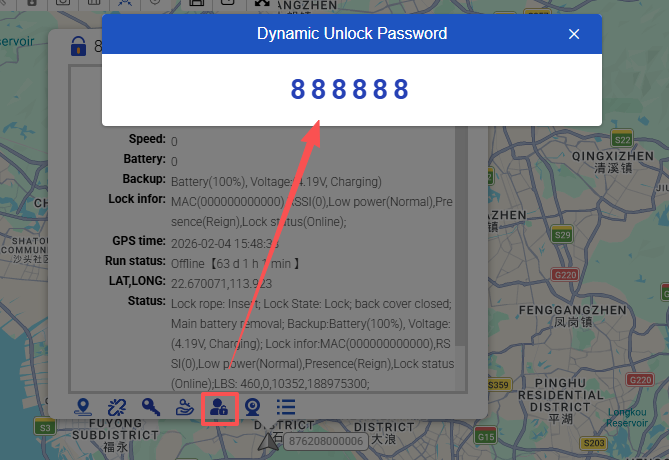

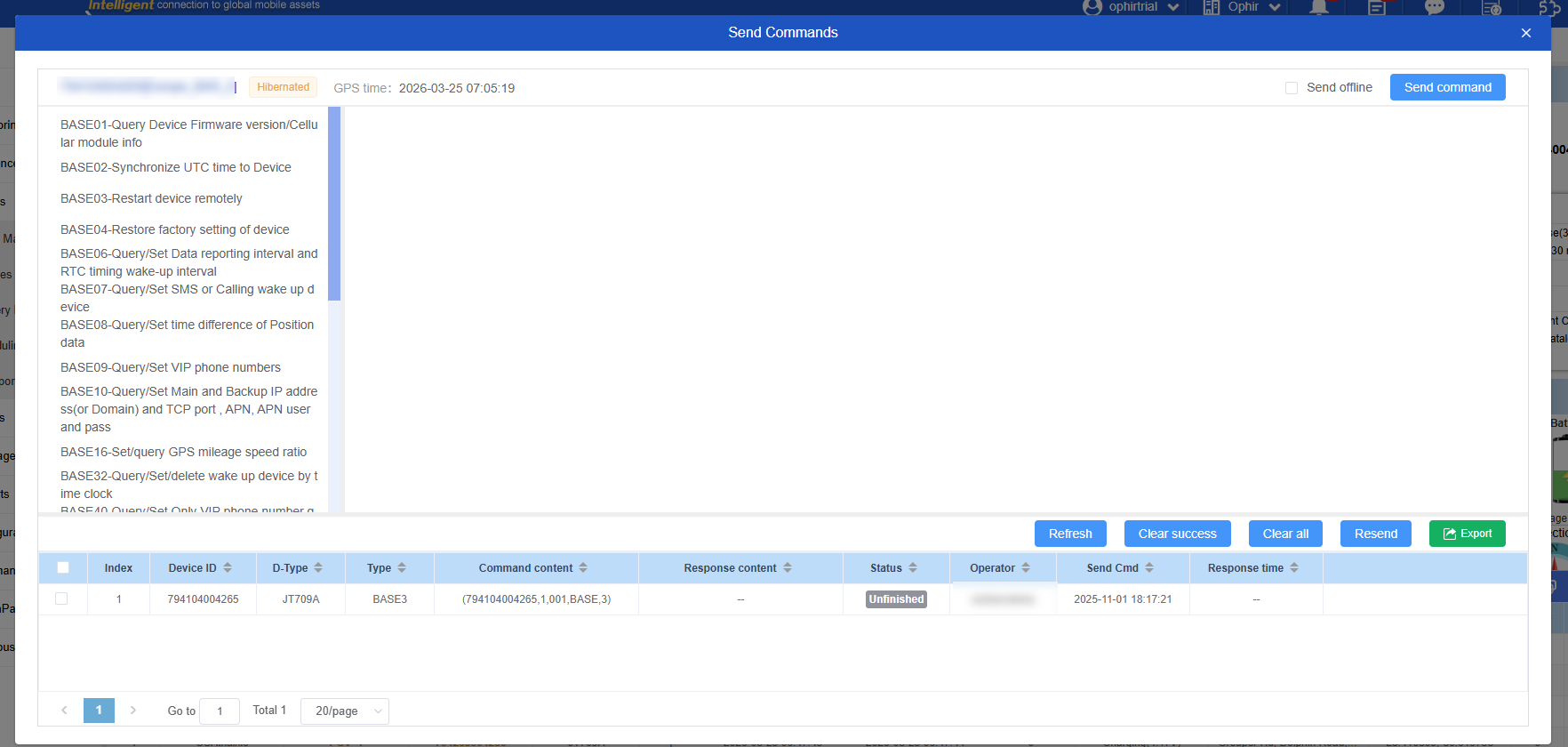

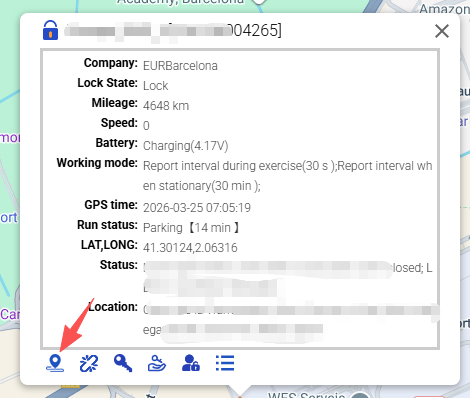

Click the corresponding operation button to jump to or pop up different operation boxes. Take the unlocking of JT701D as an example, click the key icon to perform the unlocking operation;

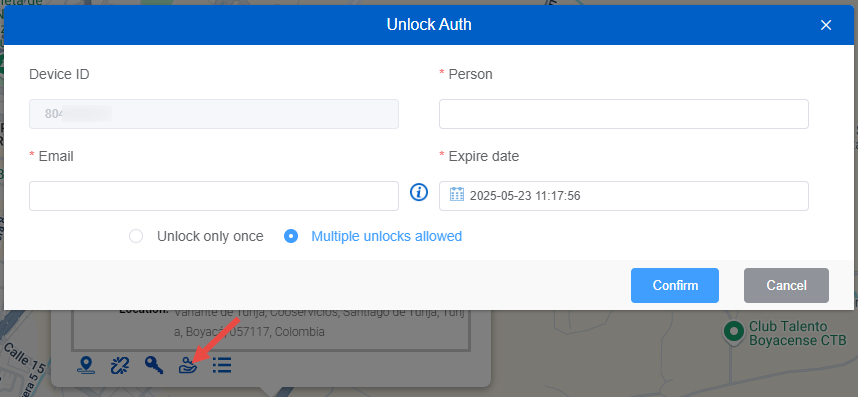

Click the operation button on the far right to perform the unlock authorization operation. You can temporarily authorize the unlocking authority of the lock to someone, enter the Email, authorizer and valid time.
After the authorization is successful, the authorization code for this unlock will be automatically sent to the mailbox, and then you need to log in to Authorized Unlock, and scan the code to unlock after successful login;

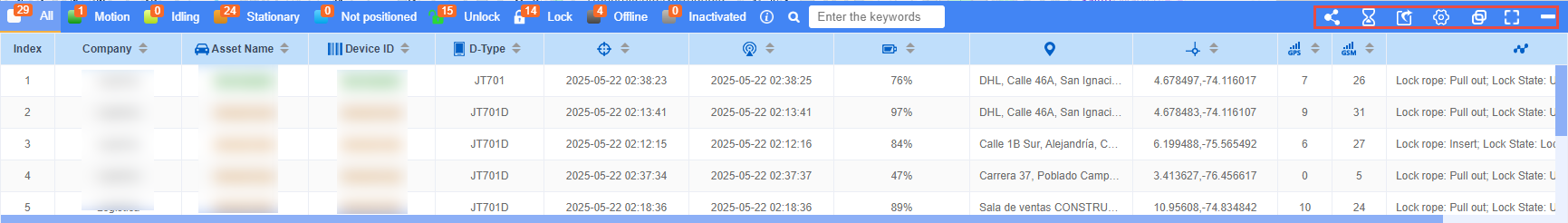

There are many operations corresponding to the data list box below;
The sequence is: modify the refresh frequency, export the real-time data, select the display item content, the list box restores the default state, the list box is maximized, and the list box is minimized;

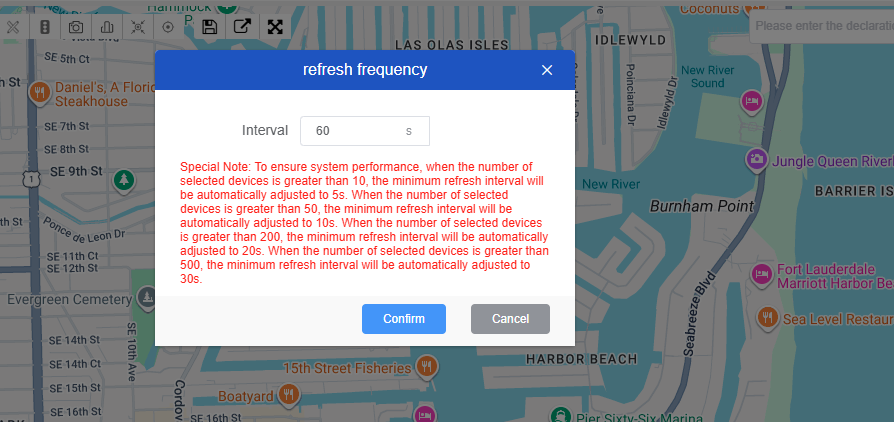

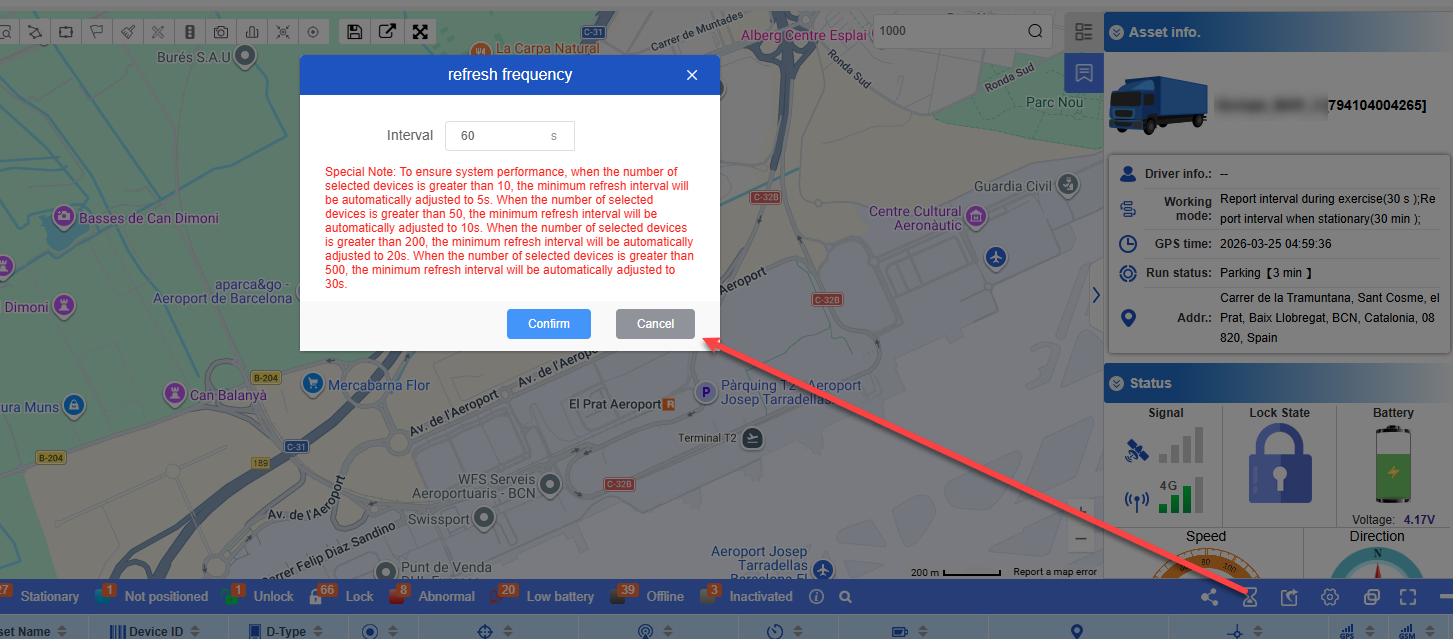

Modify refresh frequency：

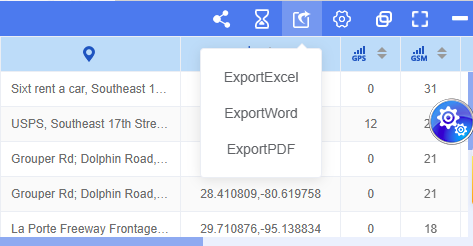

Real-time data export:
All data in the list column will be exported to Excel, which can be exported according to the custom displayed fields.

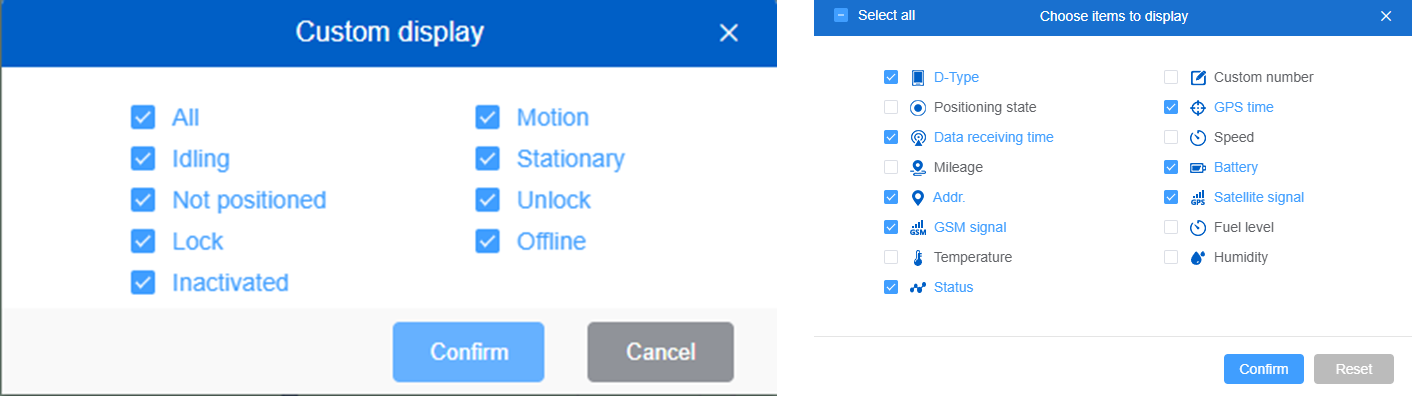

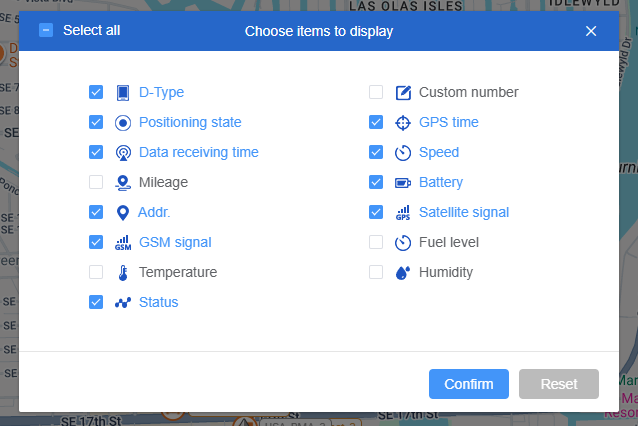

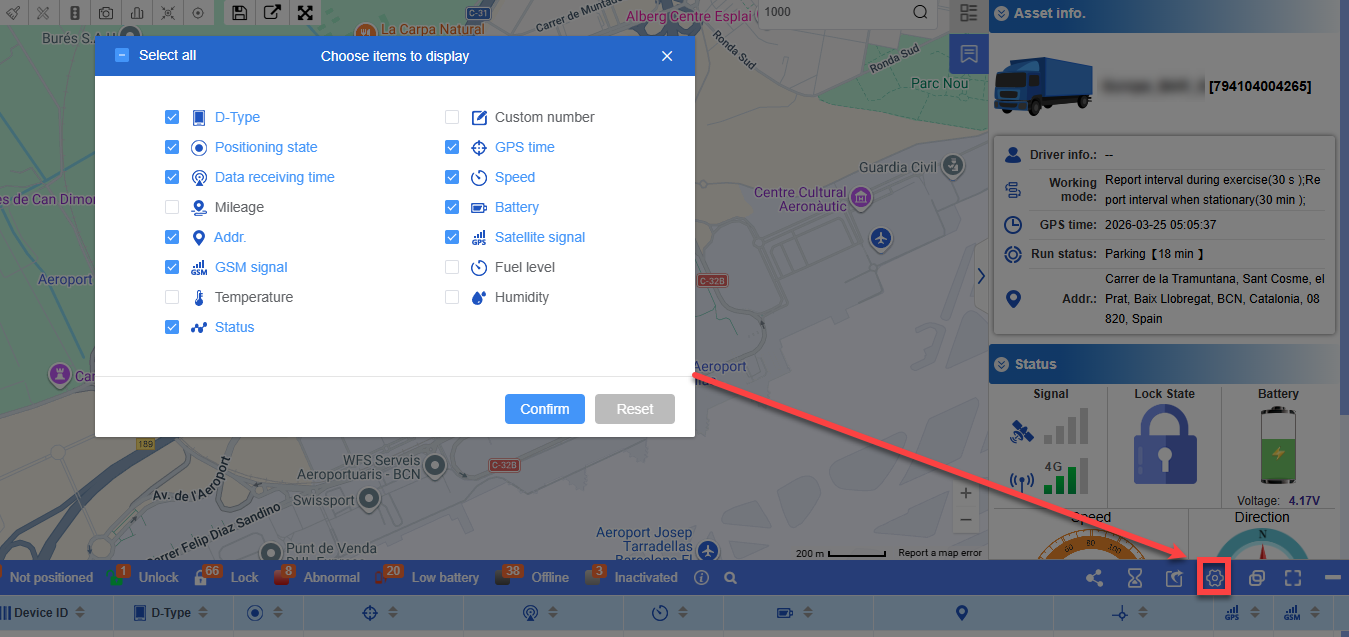

Select display item content:
Added temperature status display data for device (JT707A):

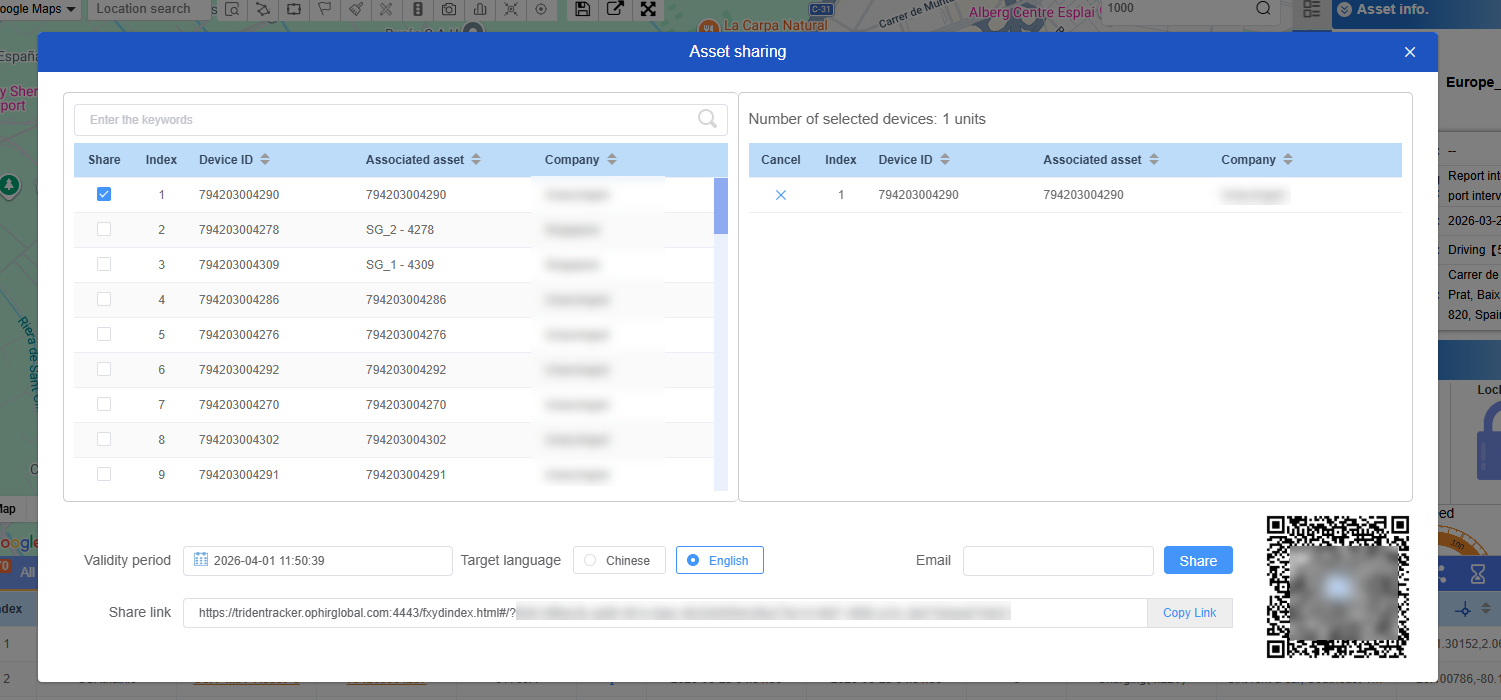

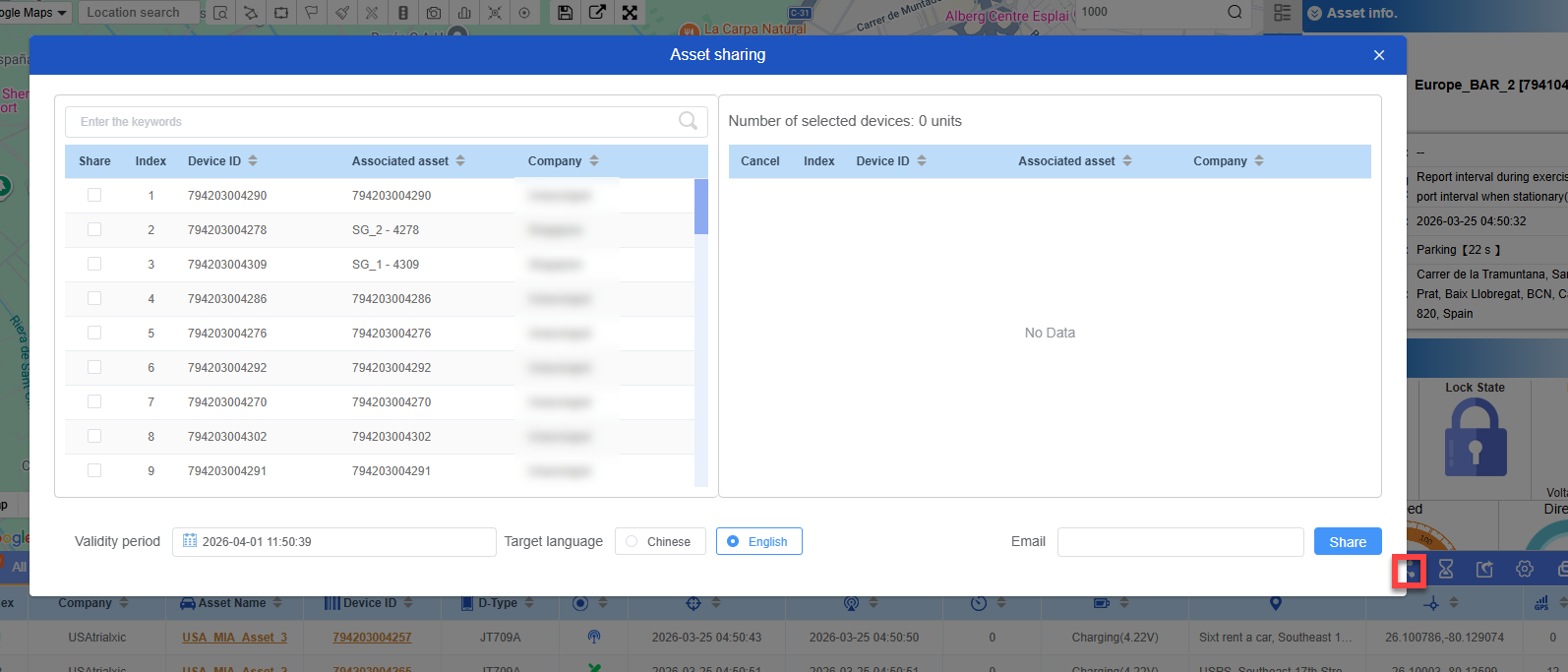

#####Asset Sharing: After selecting the device, the asset information can be shared within the specified time through email or generated link.
