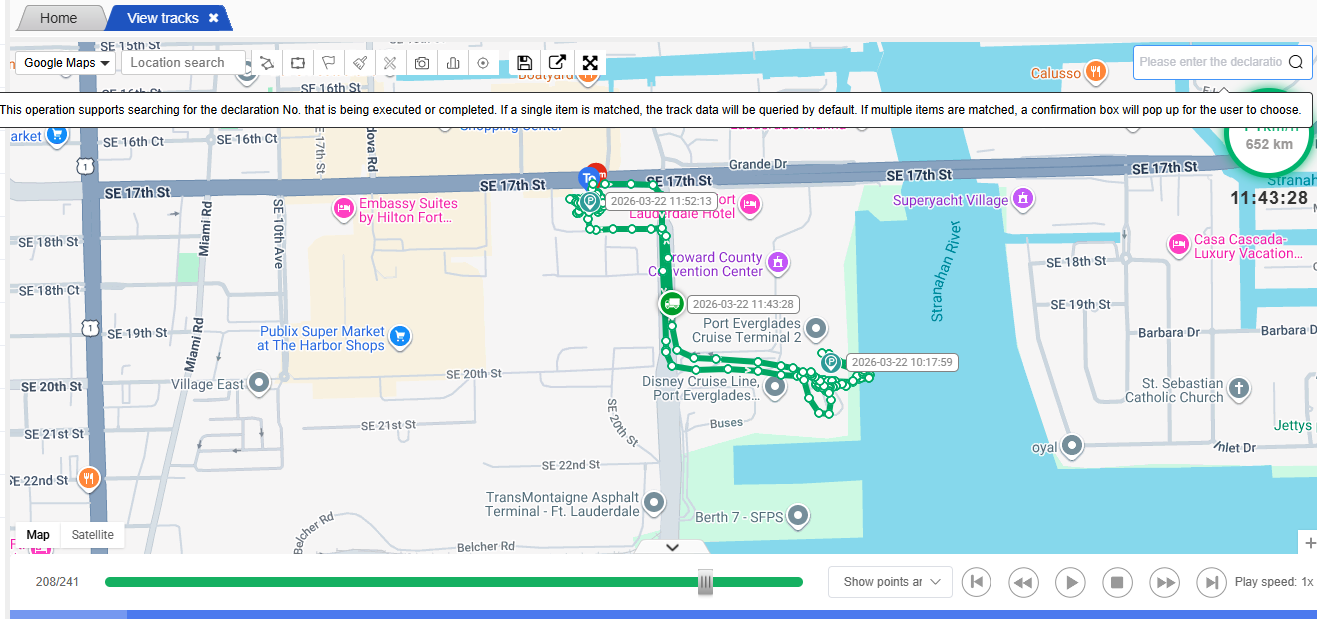

The overall effect of track playback is as follows:

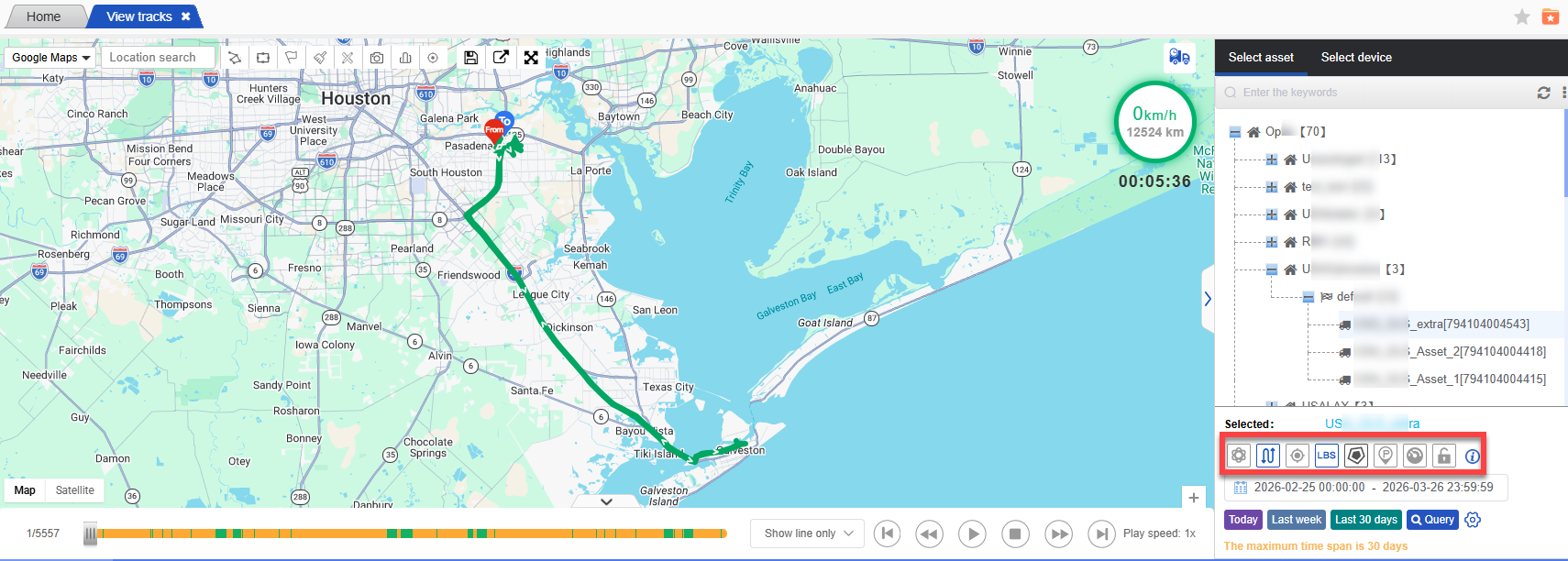

Select a asset on the right to query the historical tracks of the current asset;

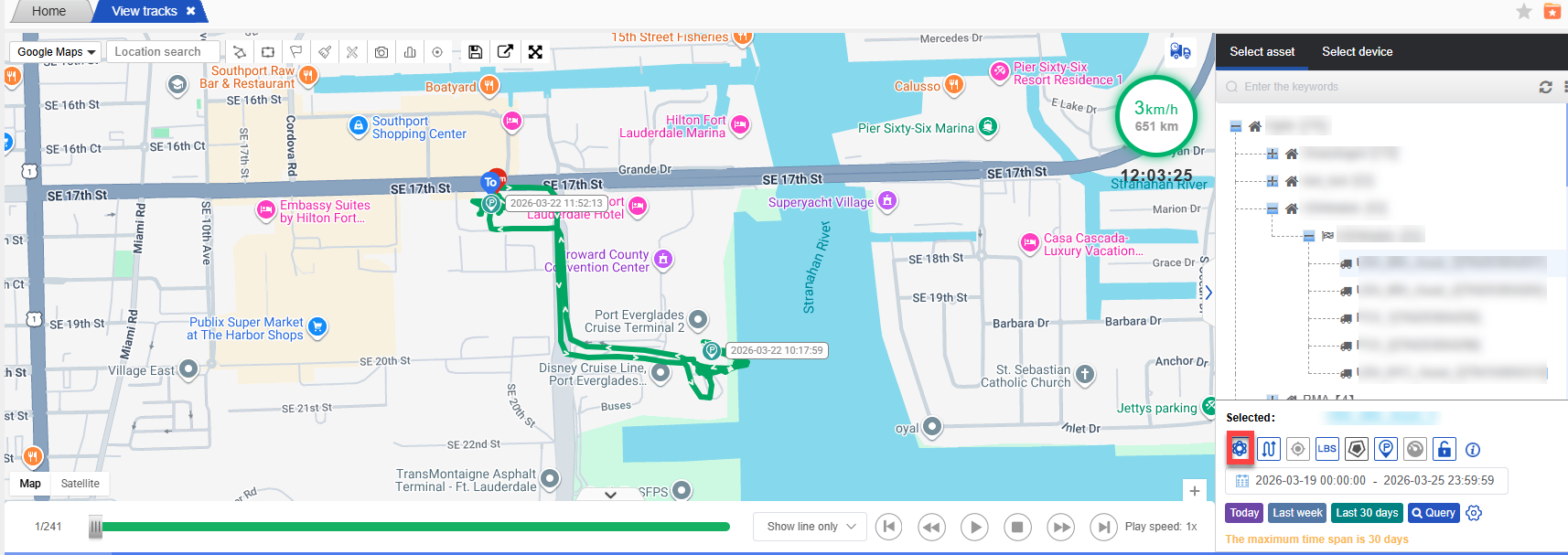

If you select these states during the query, the points corresponding to these states can be displayed on the map, such as parking points, alarm points…
These points will also vary according to the type of equipment bound to the asset. For example, the vehicle tracker(chinese JT808 standard protocol) will have fuel addition and subtraction, and the smart lock will have a switch lock…
If you check the Enable tracks optimization scheme during the query, the system will filter out the points whose speed is equal to 0, making the query more efficient, and the tracks will be more in line with the actual operating conditions;

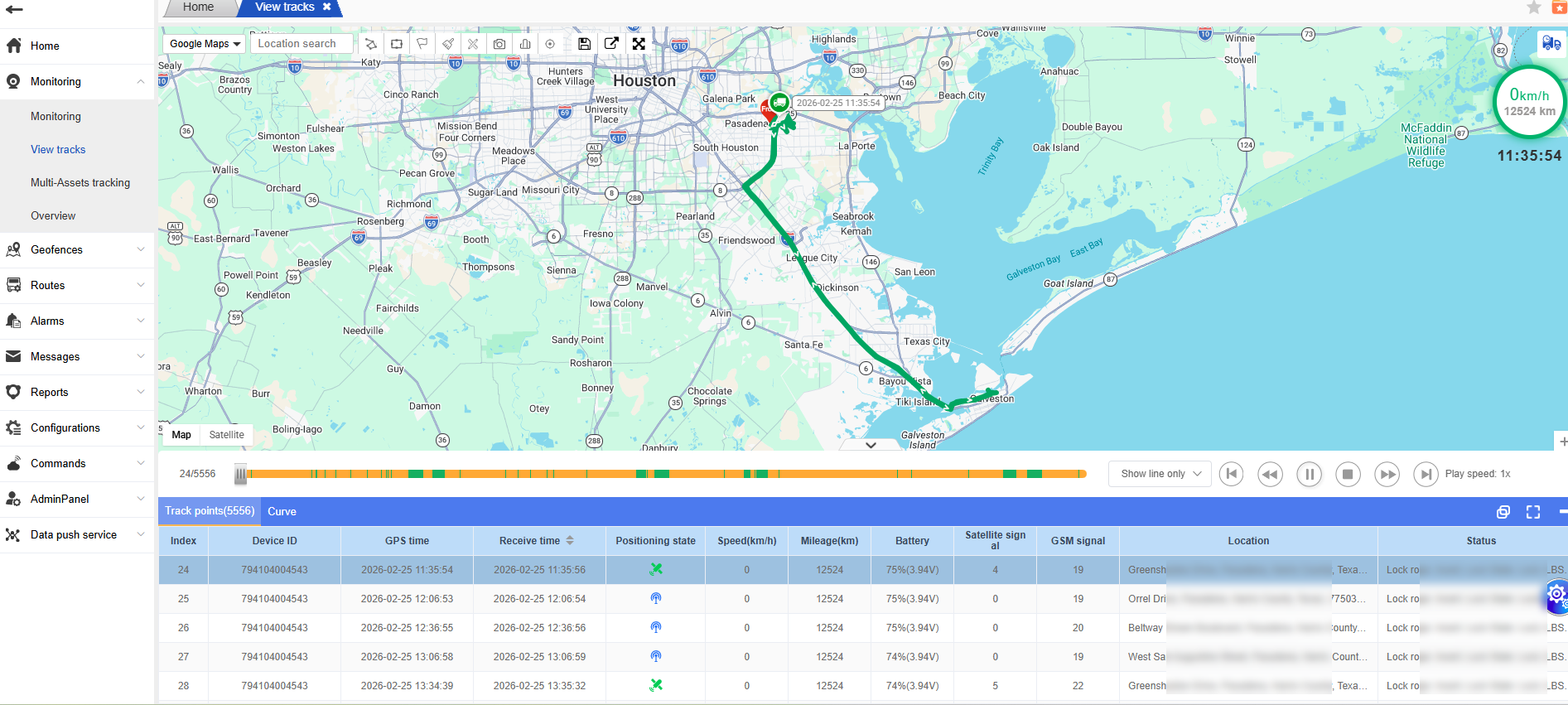

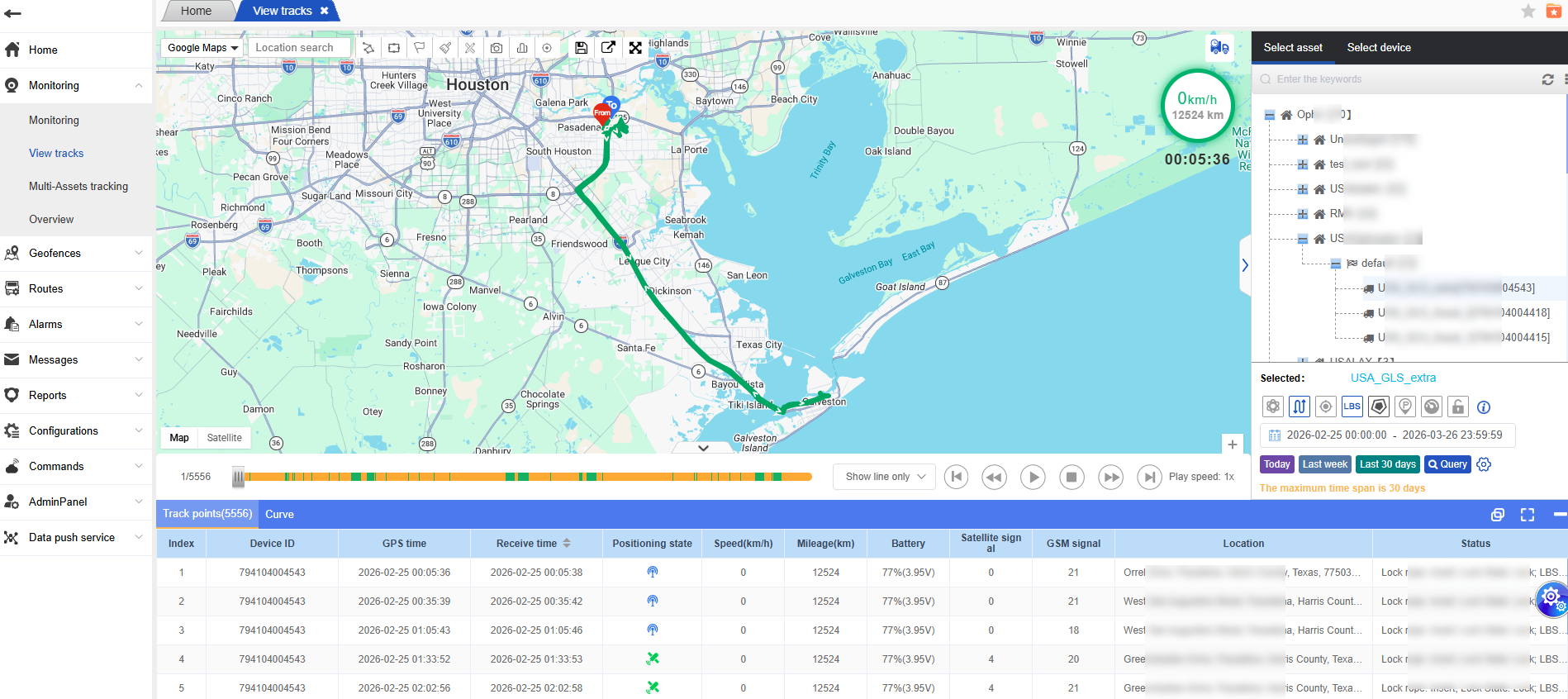

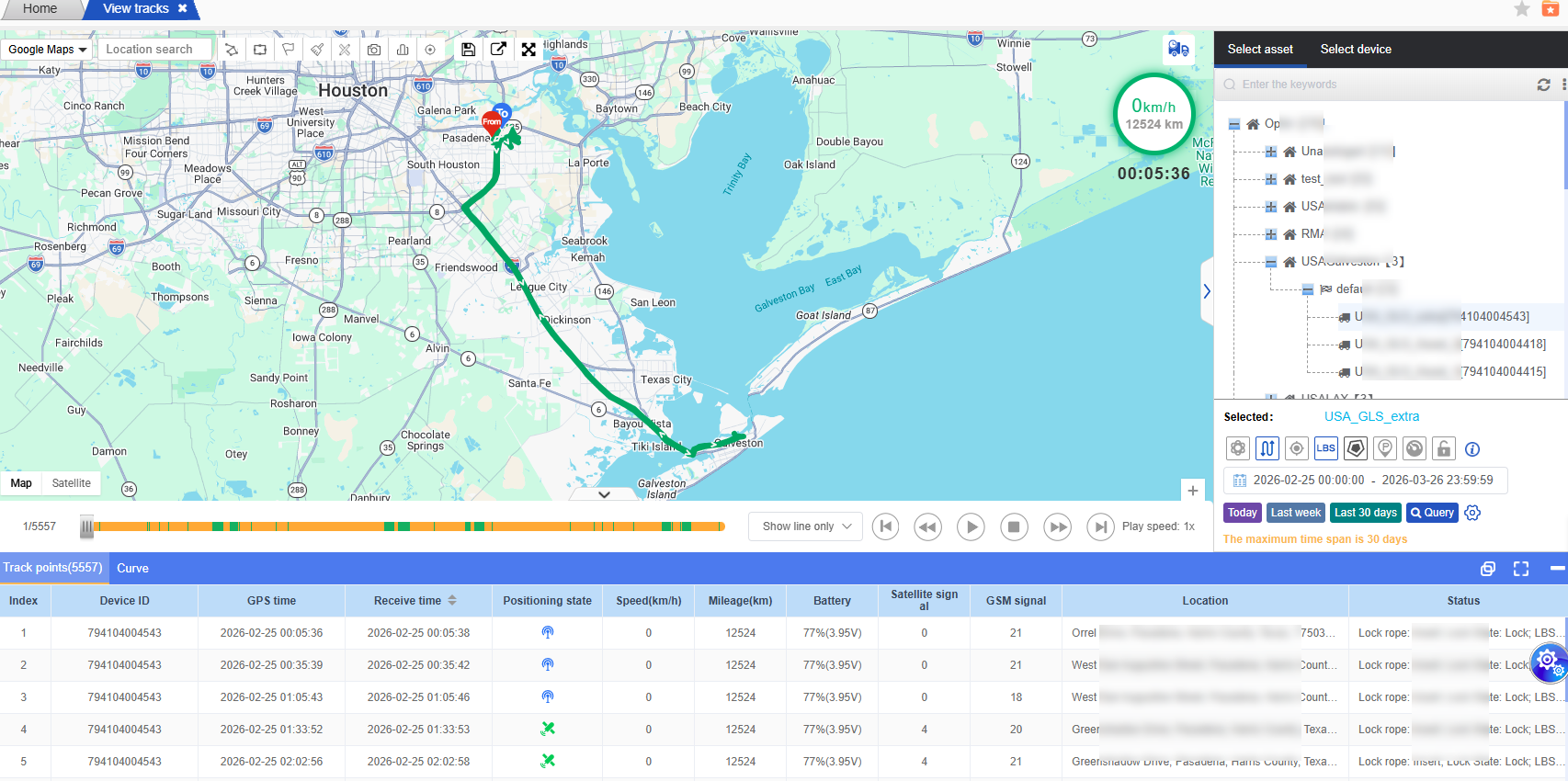

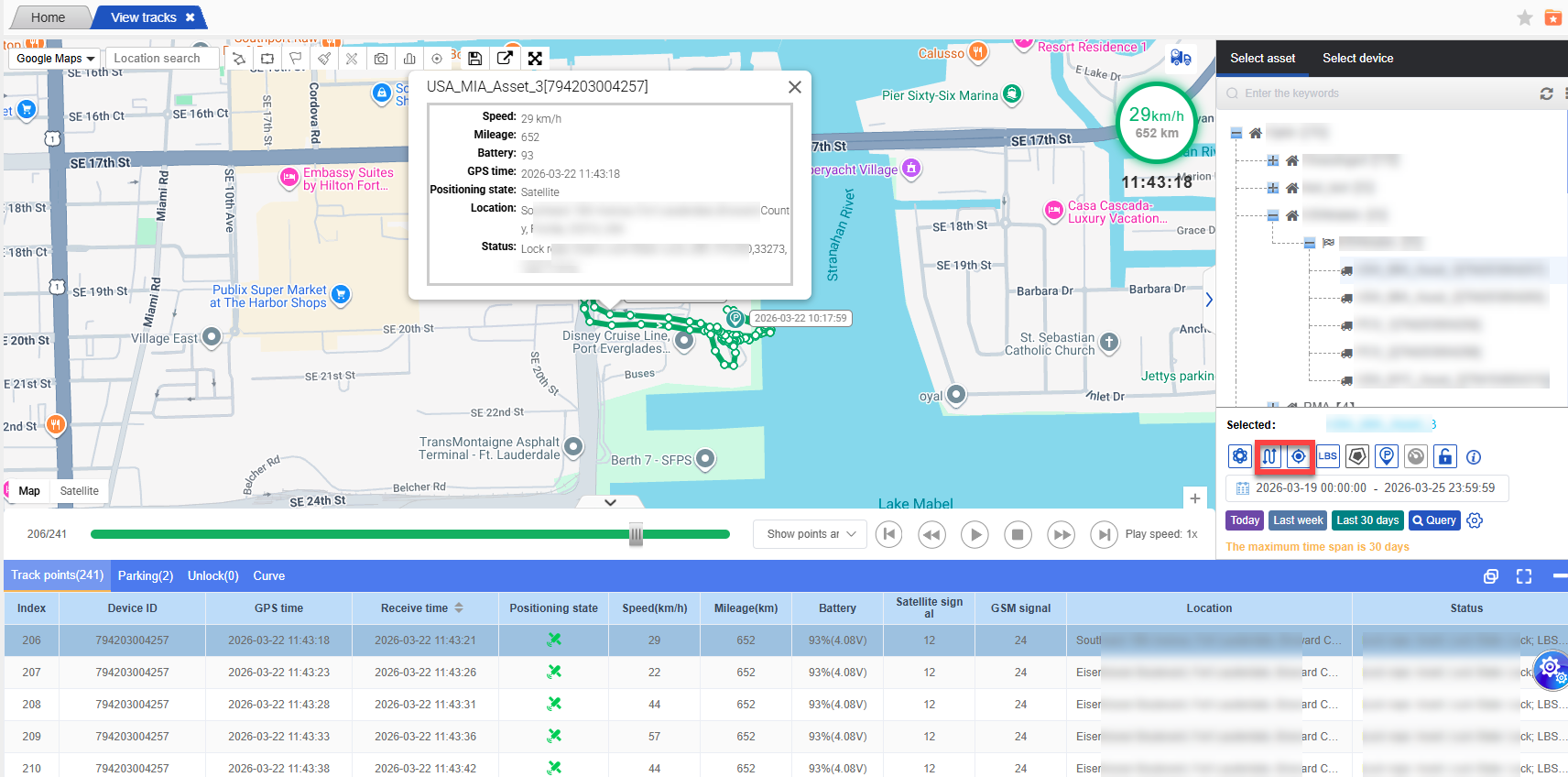

The queried track will have lines and points by default. Clicking on the track will display the corresponding track point data in the lower data column. Clicking on the track point data in the lower data column will automatically identify the track points in the map, which is achieved. Two-way reverse election.

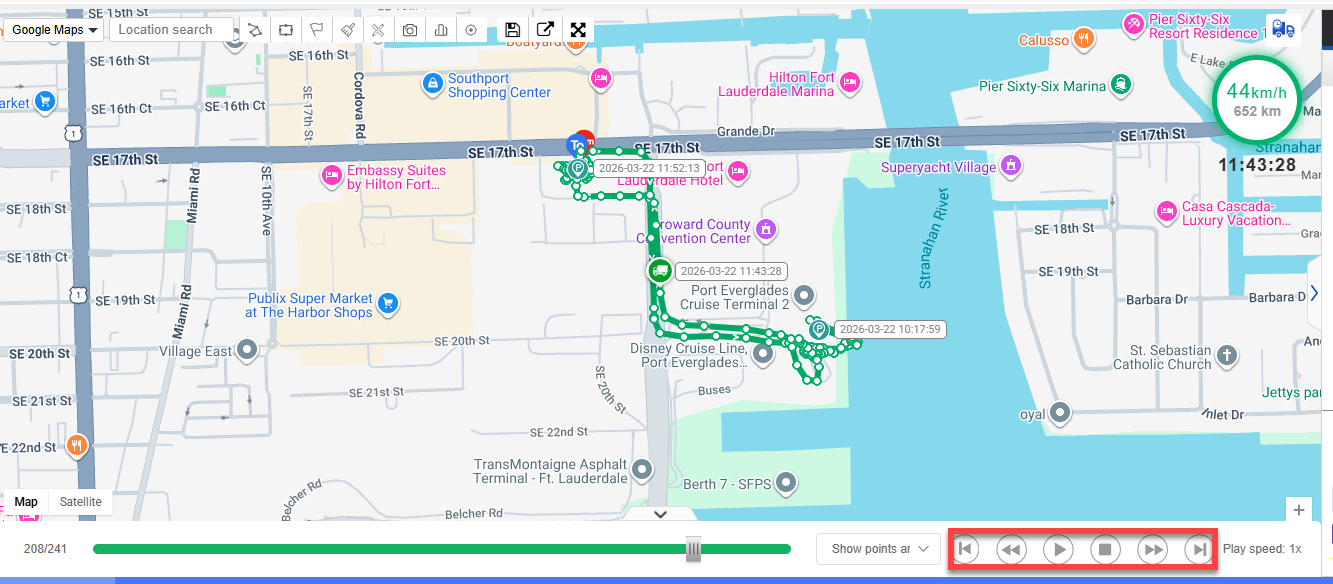

The following picture shows the play button and timeline for track playback. Click the play icon in the middle to play back the asset according to the history of the asset. The remaining 6 buttons will be played back from left to right,reset to begin, slow down, Play, Stop ,reset to end.
